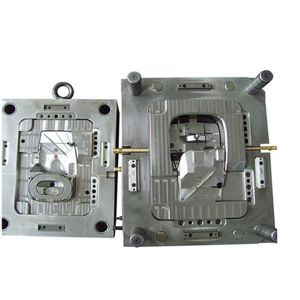

Vehicle Design Plastic Injection Tooling For Auto Part / Mould With Slide

Ask Lasest Price
Brand Name :	OEM/ODM
Model Number :	HW-127
Certification :	ISO9001
Price :	2.55-5.55usds
Supply Ability :	100000 pieces
Delivery Time :	25-30days

Add to Cart

Product Details
Company Profile

Vehicle Design Plastic Injection Tooling For Auto Part / Mould With Slide

Vehicle Design Disposable auto part plastic syringe injection mold

Mould Information:

Main Technique Parameters
Cavity/Core Material	718H, P20, NAK80, 2316,2738,Din2344,H13 and available
Product Material	ABS, PC, PP, PVC, POM, PMMA, PS, PE, PET, Rubber, Silicone, PA, PBT, PEI, etc.
Base	LKM or by requested
Structure	Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter
Runner System	Hot runner, Cold runner
Cavity	Single cavity, multi-cavity by requested
Finish	Corrosion word, Mirror finish, Brushed
Longevity	0.5-1 million shots
Mould standard	HASCO, DME, MISUMI, or by requested etc.
Software	CAD, Pro-E, UG, etc
Tolerance	± 0.05mm
Design Time	3-7days
Sample time	3-7days
Main Technique	Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc.
Production time	2-7 weeks, depends on mould structure
Packing	Wooden case, PE, or by request

1. Adopt special cap mould treatment technology, key parts using corrosion resisting mirror steel, surface hardness can reach HRC60°

2. Mould material adopts imported P20, 2316 etc mould steel.

3. Hot runner is designed advanced and reasonably, each cavity heat controlled independently, which makes the temperature uniform.

4. Each cavity and core have an independent cooling system, which can shorten the production period.

5. Mould can be self knockout, reduce labor cost.

6. The mould cavity can be changed, which is convenient to change the remark of the cap.

7. Mould lifetime can be guaranteed with 2 million mould times.

8. All design can be customized as client's request: color, size, shape, material...

Our Services

Item Name	Expert of Precision Injection Plastic Tooling Design and Mold Maker
Service	1.CNC Plastic/Metal Prototypes
	2.Vacuum casting/vacuum forming(Silicon Mould)
	3.Low Volume Production
	4.Rapid Hardware/Sheet Metal Prototypes
	5.CNC Aluminum/Brass/Copper/Bronze CNC machining/machined parts
	6.Automotive and medical equipment Prototypes
	7.SLA/SLS prototype
	8.Metal Stamping&NCT Stamping
	9.3D Printing
	10.Die-casting, hardware machining
	11.Electronic Manufacturing Service
	12.Injection mould&Plastic Injection
	13. Lathing parts
	14.Design service (OEM service)
Certification passed	Bureau Veritas,ROHS,ISO

We usually quote within 24 hours after we got your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q. How can I get an accurate price?

A. There are some basic specs we need to know for price calculation, that is: 3D drawings in STP, IGS, X-T format are available, Please suggest to us your quantity too.

Q. Do you accept the OEM?

A. OEM is welcome. We can custom the good according to your design.

Q. What is the shipping?

A: By express(FedEx, UPS, DHL, TNT, EMS, etc...), By Air, by shipping.

Q. How do I pay for the order?

A. The common payments are T/T(Telegraphic Transfer), western union,

Q. I have an idea for a new product, but don't know if it can be manufactured. Can you help?

A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.

Q. What are the advantages of having my parts manufactured locally?

A. We can offer quick reaction times to any changes in specification, batch size or material.

Q. My components have already been developed on CAD. Can you use the drawings?

A. Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models, and mould tools - this can save time and money in producing your parts.

Q. Can I test my idea/component before committing to mould tool manufacture?

A. Yes, we can use CAD drawings to make models for design and functional evaluations.

Q. What type of plastic is best for my design/component?

A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.

Q. What type of mould tool do I need?

A. Mould tools can be either single impression (one part at a time) or multi-impression (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.

Q. Ok, I've decided to go ahead with my project. How long will it take to get my parts?

A. It can take 3-8 weeks to have the mould tool manufactured depending on the part's complexity and the number of impressions (single or multi). After we have received final approval by you of the new tool, you can expect delivery of parts within 2-3 days.
